Product Introduction
 |
 |
Ground Fault Circuit InterrupterEffectively protects the motor from overload, enhancing motor lifespan. The open design allows for easy observation. |
Kelly ControllerUses automotive-grade Infineon CPU and internationally advanced MOSFET devices. It is certified to IATF16949 automotive quality management system standards, improving vehicle stability and range. |
 |
 |
Imported Material CoverAll product covers are made of imported linear low-density polyethylene (PE). |
All Stainless Steel FrameHeLi is the industry's first equipment supplier to use an "all stainless steel" material for its washing/sweeping machines. All products use a stainless steel chassis. |
 |
 |

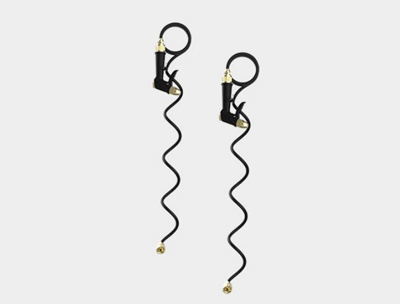

High-Pressure Washing DeviceEquipped with a stainless steel high-pressure washing device, making cleaning the garbage bin and side brushes easier and more convenient. |

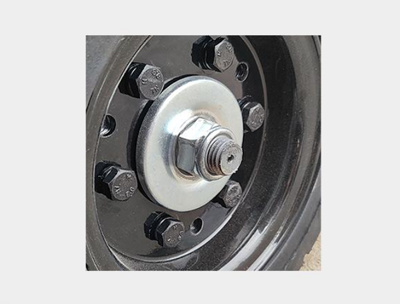

Dust CoverOne-piece stamped dust cover with galvanized rust-proof treatment, highly effective dust prevention, prevents corrosion from external harmful substances, and extends the bearing service life. |
Performance Parameters
|
Name |
Parameter Value/Specification |
|
Vehicle Model |
R-S1100 |
|
Sweeping Width |
1100mm |
|
Main Brush Size |
490*300mm |
|
Work Efficiency |
0-6600m²/h |
|
Travel Speed |
0-6km/h |
|
Water Tank Capacity |
60L |
|
Dustbin Capacity |
75L |
|
Working Time |
2-2.5H |
|
Side Brush Diameter |
460mm*2 |
|
Vacuum Filtration Area |
4.2m² |
|
Tire Model |
Front 250*65mm Rear 250*70mm Solid Tire |
|
Braking System |
Mechanical Brake + Electronic Brake + Anti-rollback |
|
Battery Type |
Lead-acid maintenance-free/Lithium battery |
|
Battery Capacity |
48V/50Ah |
|
Drive Motor |
48V/800W |
|
Main Brush Motor |
48V/650W |
|
Side Brush Motor |
48V/90W*2 |
|
Push Rod Motor |
48V/20W*2 |
|
Electric Dust Removal |
48V/120W |
|
Blower |
48V/95W |
|
Vehicle Weight |
320KG |
|
Vehicle Dimensions |
1569*1114*1327mm |
|
Packaging Dimensions |
1660*980*1475mm |
|
Minimum Turning Radius |
260mm |
