Product Introduction
 |
 |

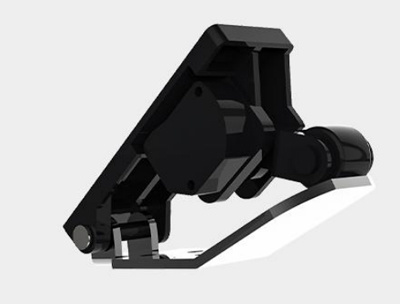

Engineering Vehicle AcceleratorUses German MICRONAS888 chip, built-in anti-runaway function, stable performance, and higher overall vehicle safety. |

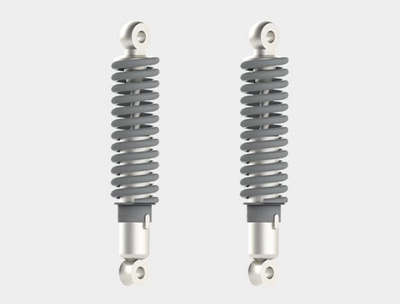

Spring Shock AbsorberUses a floating piston alloy steel spring with powder coating, effectively reducing the amplitude of mechanical structural resonance. Avoids structural damage caused by kinetic energy reaching its limit, extending equipment life and increasing driving comfort. |
 |
 |

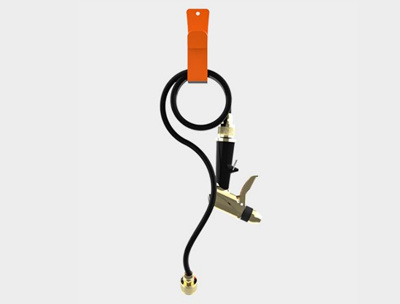

Stainless Steel High-Pressure Wash GunStandard configuration uses a stainless steel high-pressure wash gun design, making cleaning of the garbage bin and side brushes easier and more convenient. |

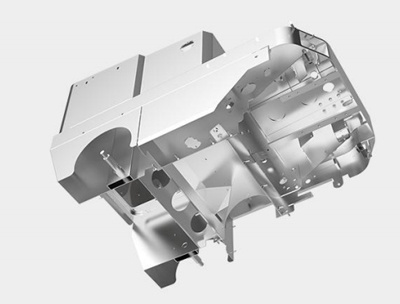

All-Stainless Steel ChassisHeli is the industry's first equipment supplier to use "all-stainless steel" material to build washing/sweeping machines. All products use a stainless steel chassis. |
 |
 |

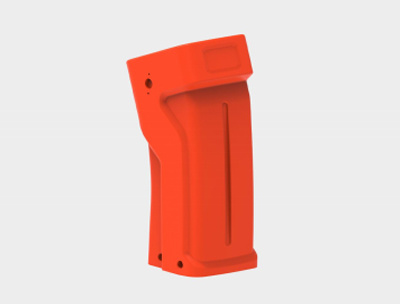

Imported Material CoveringsAll product coverings are made of imported linear low-density polyethylene (PE) material. |

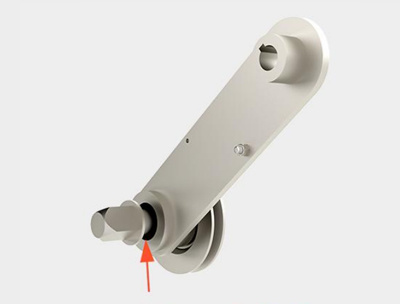

Skeleton Oil SealProfessional fluoroelastomer skeleton oil seal prevents dust, dirt, and contaminants from entering, effectively protecting the bearing service life |
Performance Parameters
|
Name |
Parameter Value/Specification |
|
Vehicle Model |

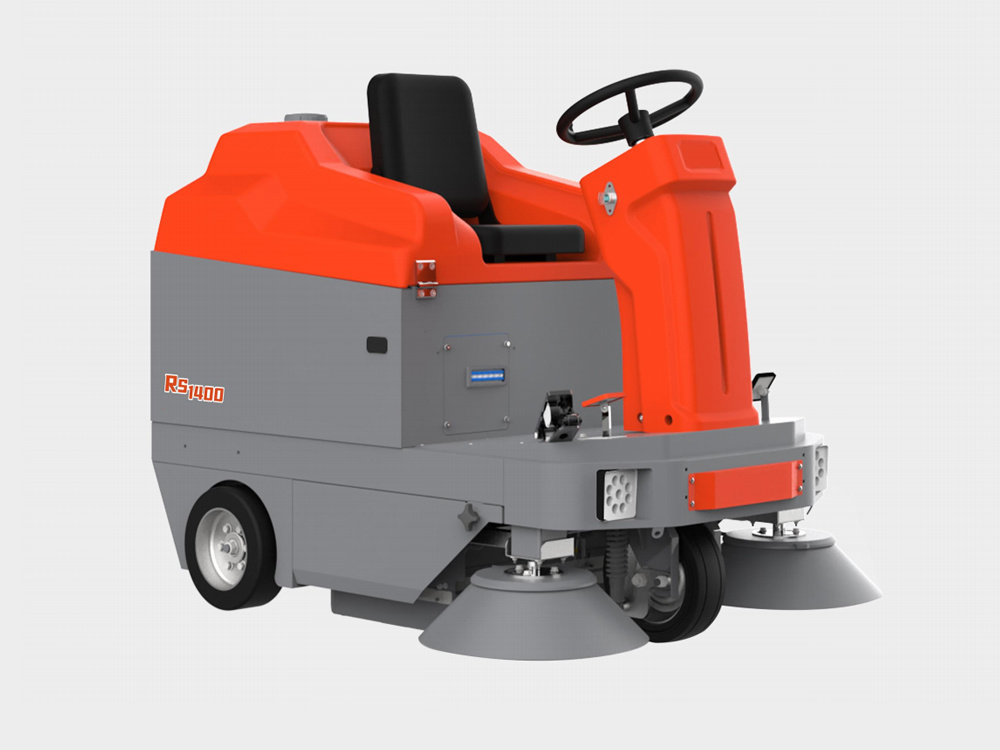

R-S1400 |
|
Sweeping Width |
1400mm |
|
Main Brush Size |
690*300mm |
|
Work Efficiency |
0-9800m²/h |
|
Travel Speed |
0-7km/h |
|
Water Tank Capacity |
90L |
|
Dustbin Capacity |
100L |
|
Working Time |
4-5H |
|
Side Brush Diameter |
500mm*2 |
|
Vacuum Filtration Area |
4.2m² |
|
Tire Model |
Front 300*100mm Rear 300*100mm Solid Tire |
|
Braking System |
Mechanical Brake + Electronic Brake + Anti-rollback |
|
Battery Type |
Lead-acid maintenance-free/Lithium battery |
|
Battery Capacity |
48V/100Ah |
|
Drive Motor |
48V/1000W |
|
Main Brush Motor |
48V/950W |
|
Side Brush Motor |
48V/90W*2 |
|
Push Rod Motor |
48V/20W*2 |
|
Electric Dust Removal |
48V/120W |
|
Blower |
48V/95W |
|
Vehicle Weight |
430KG |
|
Vehicle Dimensions |
1740*1400*1316mm |
|
Packaging Dimensions |
1800*1267*1511mm |
|
Minimum Turning Radius |
580mm |
