Product Introduction
Product Highlights
Flexible operation and handling
★Ultra-stable design, significantly improves safety factor, compact body, wide operating area
★Foldable guardrail, convenient for transportation
★With floating bridge chassis, not afraid of uneven ground
★Fault self-diagnosis, can display fault prompt information, convenient and quick troubleshooting
Performance Parameters
|
Model |

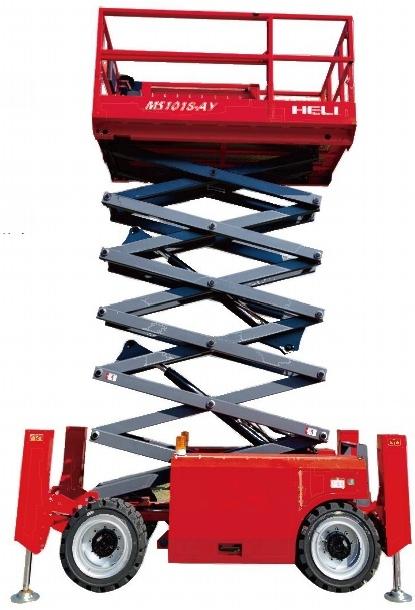

MS1018-AY |
|
Dimensions |
|
|
Maximum Working Height |
12m |
|
Maximum Platform Height A |
10m |
|
Maximum Horizontal Reach B |
1.5m |
|
Stowed Length C |
2.71m |
|
Length with Extended Platform |
4m |
|
Length with Legs Stowed |
3.23m |
|
Stowed Width D |
1.81m |
|
Stowed Height (Platform Unfolded) E |
2.74m |
|
Stowed Height (Platform Folded) |
2.04m |
|
Wheelbase F |
1.89m |
|
Ground Clearance |
0.31m |
|
Platform Dimensions (L*W*H) |
2.5m*1.6m*1.15m |
|
Kick Plate Height |
0.15m |
|
Performance |
|
|
Maximum Number of Passengers |
4 people |
|
Payload |
454kg |
|
Payload (Extended Platform) |
136kg |
|
Travel Speed (Stowed) |
4.5km/h |
|
Travel Speed (Elevated) |
0.7km/h |
|
Lifting Time |
45s |
|
Lowering Time |
37s |
|
Climbing Ability |
30% |
|
Inner/Outer Turning Radius |
1.58m/3.89m |
|
Longitudinal Tilt |
3° |
|
Lateral Tilt |
1.5° |
|
Tire Specifications/Type |
675mm*280mm |
|
Leg Leveling Capacity (Front to Rear) |
6.6° |
|
Leg Leveling Capacity (Left to Right) |
10.6° |
|
Power |
|
|
Drive Mode |
Electric Drive 4WD×2WS |
|
Power Unit Motor (Voltage/Power) |
48V/4.5kW |
|
Hydraulic Oil Tank Capacity |
68L |
|
Battery Specifications |
235Ah |
|
Control Voltage |
24V |
|
Charger (Input Voltage/Output Current) |
48V/60A |
|
Weight |
|
|
Total Weight |
3980kg |
|
Weight (with Legs) |
4440kg |
|
Compliance Standards |
GB/CE |
