  • MA15-A电动自行式曲臂型高空作业平台.png

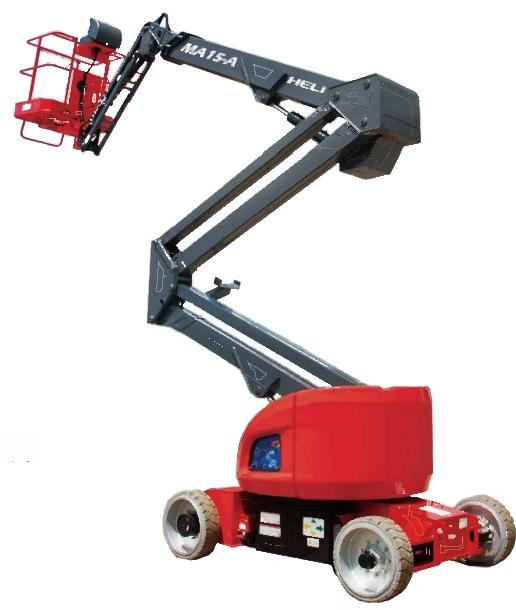

MA15-A Electric Self-Propelled Articulated Boom Lift


Product Introduction

Product Highlights

Green and Environmentally Friendly

★Electric drive, green and environmentally friendly

★Zero emissions, meeting the strict emission requirements of indoor and outdoor construction sites



Compact Structure

★Compact design throughout the series, while ensuring high maintainability and stronger operating capabilities in narrow and complex working conditions



Excellent Performance

★Maximum operating angle of 3 degrees is standard across the entire series, enhancing the operating range and adaptability to various work sites

★230kg heavy load, ultra-strong adaptability to multiple scenarios and working conditions



Low Maintenance Cost

★Compared to diesel power, battery maintenance costs are low, reducing overall operating costs



Electric Drive

★Low cost, low noise, low maintenance, green and energy-efficient

Performance Parameters

Model

MA15-A

Dimensions

Maximum Working Height

17m

Maximum Platform Height

15m

Maximum Working Radius

9.12m

Maximum Span Height

7.2m

A Overall Length (Stowed)

6.99m

B Overall Width (Stowed)

1.77m

C Overall Height (Stowed)

2.17m

D Wheelbase

2m

Ground Clearance

0.21m

Platform Dimensions (L×W×H)

1.5×0.76×1.1m

Performance

Rated Load

230kg

Turntable Rotation

360° Non-continuous

Platform Rotation

0/180°

Maximum Travel Speed - Stowed

5km/h

Maximum Travel Speed - Elevated

1km/h

Climbing Ability

30%

Inner Turning Radius

1.1m

Outer Turning Radius

3.5m

Turntable Tail Sweep

0

Allowable Working Tilt Angle (Forward/Sideways)

5°/3°

Drive × Steering

2×2

Tire Specifications/Type

240-55D17.5 (Foam Tires)

Power

Battery Specifications

DC48/320Ah

Control Voltage

DC12V

Hydraulic Oil Tank Capacity

35L

Weight

Overall Weight

6800kg
