Product Introduction
Product Highlights
Green and Environmentally Friendly
★Electric drive, green and environmentally friendly
★Zero emissions, meeting the strict emission requirements of indoor and outdoor construction sites
Compact Structure
★Compact design throughout the series, while ensuring high maintainability and stronger operation capabilities in narrow and complex working conditions
Excellent Performance
★Maximum operating angle of 3 degrees is standard across the entire series, enhancing the operating range and adaptability to various work sites
★230kg heavy load, ultra-strong adaptability to multiple scenarios and working conditions
Low Maintenance Cost
★Compared to diesel power, battery maintenance costs are low, reducing overall operating costs
Electric Drive
★Low cost, low noise, low maintenance, green and energy-efficient
Performance Parameters
|

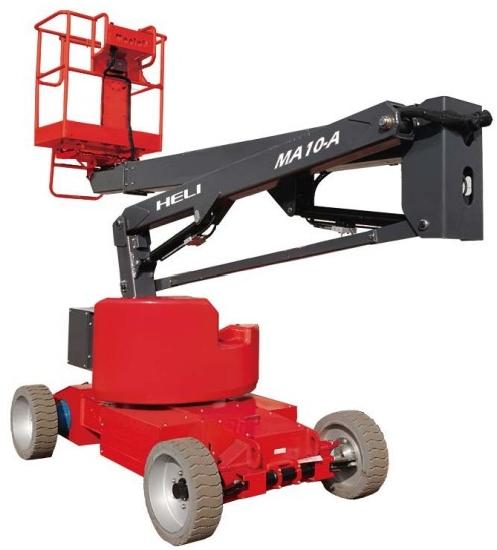

Model |
MA10-A |
|
Dimensions |
|
|
Maximum Working Height |
12m |
|
Maximum Platform Height |
10m |
|
Maximum Working Radius |
6m |
|
Maximum Span Height |
4.2m |
|
A Overall Length (Stowed) |
4.2m |
|
B Overall Width (Stowed) |
1.5m |
|
C Overall Height (Stowed) |
1.96m |
|
D Wheelbase |
1.96m |
|
Ground Clearance |
0.18m |
|
Platform Dimensions (L×W×H) |
1.16×0.65×1.1m |
|
Performance |
|
|
Rated Load |
200kg |
|
Turntable Rotation |
360° Non-continuous |
|
Platform Rotation |
/ |
|
Maximum Travel Speed - Stowed |
4km/h |
|
Maximum Travel Speed - Elevated |
1km/h |
|
Climbing Ability |
25% |
|
Inner Turning Radius |
1.9m |
|
Outer Turning Radius |
4.2m |
|
Turntable Tail Sweep |
0 |
|
Allowable Working Tilt Angle (Forward/Sideways) |
5°/3° |
|
Drive × Steering |
2×2 |
|
Tire Specifications/Type |
22*7*16 (Solid Tire) |
|
Power |
|
|
Battery Specifications |
DC48/225Ah |
|
Control Voltage |
DC24V |
|
Hydraulic Oil Tank Capacity |
32L |
|
Weight |
|
|
Overall Weight |
4000kg |
