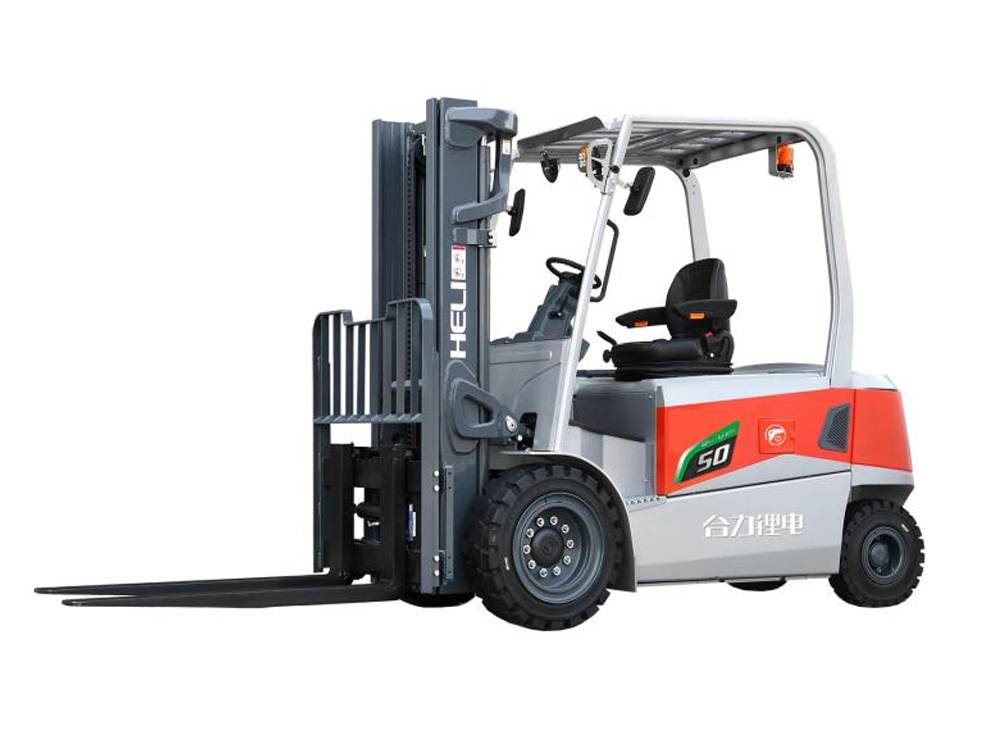

G3 series 4-5 ton lithium battery counterbalance forklift
Series：
G3 series
Ton：
3.5-5
Load center：
500mm, 600mm
Standard door lifting height：
3000mm
Product Introduction
High Reliability:
Uses maintenance-free integrated bridge, mature and reliable product, proven in the market;
Both the driving and pump motors use maintenance-free AC motors;
Uses internationally renowned brand electronic control, intelligent and superior.
High Safety:
Adopts a tailless body structure, with a low center of gravity and high lateral stability;
High rear axle rotation point, improving the overall vehicle's lateral stability;
Automatic speed reduction function during turns, improving vehicle turning operation safety performance.
Improved Human-Machine Comfort:
Frame up and down buffer function, safer and more comfortable operation;
Suspension seat and wide-view frame, enhancing driving experience;
Optimized battery arrangement and counterweight design, improving rear visibility.
Maintenance-Free:
No need for liquid replenishment, dustproof;
Maintenance-free.
High Efficiency and Energy Saving:
2-3 hours of charging can meet 6-8 hours of operation;
High energy density, self-discharge rate below 1%/month;
95% energy conversion rate, more efficient energy conversion, superior charging and discharging performance;
Can be charged at any time, simple operation, no impact on battery life;
Battery does not need to be replaced, saving costs and ensuring operational safety.
Performance Parameters
| Model | Unit | CPD40 | CPD45 | CPD50 | CPD50 | |||
| Configuration Number | GB2Li/GB3Li | A2DLiG3 | GB2Li/GB3Li | A2DLiG3 | GB2Li/GB3Li | A2DLiG3 | GD2Li/GD3Li-600 | |
| Rated Lifting Capacity | kg | 4000 | 4500 | 5000 | 5000 | |||
| Load Center Distance | mm | 500 | 500 | 500 | 600 | |||
| Standard Mast Lifting Height | mm | 3000 | 3000 | 3000 | 3000 | |||
| Overall Length (without forks) | mm | 2920 | 2920 | 2920 | 3060 | |||
| Overall Width | mm | 1350 | 1370 | 1350 | 1370 | 1500 | 1500 | 1500 |
| Climbing force, full load | % | 17 | 20 | 16 | 20 | 15 | 18 | 15 |
